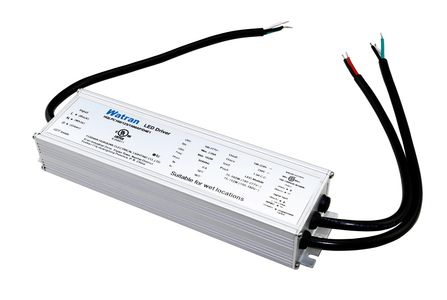

ADJUSTABLE CURRENT LED DRIVERS

MODEL NUMBER: HQLPC50/123/850AP/D4E1

INPUT VOLTAGE:  100/277V

POWER: 50W

POWER FACTOR: ≥0.95

OUTPUT VOLTAGE: 60-150V

OUTPUT CURRENT: 330-850mA±5%

MODEL NUMBER: HQLPC50/123/2100AP/D4E1

INPUT VOLTAGE:  100/277V

POWER: 50W

POWER FACTOR: ≥0.95

OUTPUT VOLTAGE: 24-60V

OUTPUT CURRENT: 850-2100mA±5%

MODEL NUMBER: HQLPC75/123/3150AP/D4E1
INPUT VOLTAGE:  100/277V
POWER: 75W
POWER FACTOR: ≥0.95

OUTPUT VOLTAGE: 24-50V

OUTPUT CURRENT: 1500-3150mA±5%

MODEL NUMBER: HQLPC75/123/1500AP/D4E1
INPUT VOLTAGE:  100/277V
POWER: 75W
POWER FACTOR: ≥0.95

OUTPUT VOLTAGE: 50-105V

OUTPUT CURRENT: 700-1500mA±5%

MODEL NUMBER: HQLPC75/123/700AP/D4E1

INPUT VOLTAGE:  100/277V

POWER: 75W

POWER FACTOR: ≥0.95
OUTPUT VOLTAGE: 105-220V
OUTPUT CURRENT: 340-700mA±5%

MODEL NUMBER: HQLPC110/123/1500AP/D4E1
INPUT VOLTAGE:  100/277V
POWER: 110W
POWER FACTOR: ≥0.95

OUTPUT VOLTAGE: 72-151V

OUTPUT CURRENT: 700-1500mA±5%

MODEL NUMBER: HQLPC110/123/3200AP/D4E1
INPUT VOLTAGE:  100/277V
POWER: 110W
POWER FACTOR: ≥0.95

OUTPUT VOLTAGE: 34-72V

OUTPUT CURRENT: 1500-3200mA±5%

MODEL NUMBER: HQLPC110/123/700AP/D4E1

INPUT VOLTAGE:  100/277V

POWER: 110W

POWER FACTOR: ≥0.95
OUTPUT VOLTAGE: 151-314V
OUTPUT CURRENT: 350-700mA±5%

MODEL NUMBER: HQLPC160/123/6600AP/D4E1
INPUT VOLTAGE:  100/277V
POWER: 160W
POWER FACTOR: ≥0.95

OUTPUT VOLTAGE: 24-50V

OUTPUT CURRENT: 3200-6600mA±5%

MODEL NUMBER: HQLPC160/123/1500AP/D4E1
INPUT VOLTAGE:  100/277V
POWER: 160W
POWER FACTOR: ≥0.95

OUTPUT VOLTAGE: 106-224V

OUTPUT CURRENT: 700-1500mA±5%

MODEL NUMBER: HQLPC160/123/3200AP/D4E1

INPUT VOLTAGE:  100/277V

POWER: 160W

POWER FACTOR: ≥0.95
OUTPUT VOLTAGE: 50-106V
OUTPUT CURRENT: 1500-3200mA±5%

MODEL NUMBER: HQLPC185/123/1700AP/D4E1
INPUT VOLTAGE:  100/277V
POWER: 185W
POWER FACTOR: ≥0.95

OUTPUT VOLTAGE: 108-264V

OUTPUT CURRENT: 700-1700mA±5%

MODEL NUMBER: HQLPC185/123/3400AP/D4E1
INPUT VOLTAGE:  100/277V
POWER: 185W
POWER FACTOR: ≥0.95

OUTPUT VOLTAGE: 54-108V

OUTPUT CURRENT: 1700-3400mA±5%

MODEL NUMBER: HQLPC185/123/6600AP/D4E1

INPUT VOLTAGE:  100/277V

POWER: 185W

POWER FACTOR: ≥0.95
OUTPUT VOLTAGE: 28-56V
OUTPUT CURRENT: 3300-6600mA±5%

MODEL NUMBER: HQLPC240/123/7200AP/DE1
INPUT VOLTAGE:  100/277V
POWER: 240W
POWER FACTOR: ≥0.95

OUTPUT VOLTAGE: 28-56Vdc

OUTPUT CURRENT: 4200-5700mA±5%

MODEL NUMBER: HQLPC240/123/4200AP/DE1

INPUT VOLTAGE:  100/277V

POWER: 240W

POWER FACTOR: ≥0.95
OUTPUT VOLTAGE: 56-114Vdc
OUTPUT CURRENT: 2100-4200mA±5%

MODEL NUMBER: HQLPC240/123/2100AP/DE1

INPUT VOLTAGE:  100/277V

POWER: 240W

POWER FACTOR: ≥0.95
OUTPUT VOLTAGE: 115-228Vdc
OUTPUT CURRENT: 1050-2100mA±5%

MODEL NUMBER: HQLPC25/123/1050AP/D20E1
INPUT VOLTAGE:  100/277V
POWER: 25W
POWER FACTOR: ≥0.95

OUTPUT VOLTAGE: 24-50Vdc

OUTPUT CURRENT: 500-1050mA±5%

MODEL NUMBER: HQLPC25/123/500AP/D20E1

INPUT VOLTAGE:  100/277V

POWER: 25W

POWER FACTOR: ≥0.95
OUTPUT VOLTAGE: 50-100Vdc
OUTPUT CURRENT: 250-500mA±5%
